Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Gate
  • Pressure: Medium Pressure
  • Power: Manual
  • Material: Casting
  • Temperature of Media: Medium Temperature
  • Media: Water
  • Port Size: DN50-DN600
  • Place of Origin: Zhejiang, China (Mainland)
  • Model Number: Z41T-16C
  • Brand Name: TANA OR OEM
  • Application: General

Packaging & Delivery

Packaging Details plywood case
Delivery Time Within 25 days after received 30% advanced payment

DIN3352-F4 PN16 Ductile iron Rising stem OS&Y metal seated gate valve

Features

Working pressure: PN10 or PN16

Seal Test(water):1.1/1.76Mpa

Shell Test(water):1.5/2.4Mpa

Working temperature:-10-200°C

Suitable media:water,steam

Applications:Caution: freezing weather precaution - subsequent to testing a piping system, ANSI cast iron gate

Valve should be left in an open position to allow complete drainage



Application Standards

Design & Manufacture:DIN3352

Face to Face:DIN3352 F4, F5

Flange End:EN1092-2 PN10 PN16

Testing & Inspection:ISO5208





Main parts and materials
NameDIN3352-F4 PN16 Ductile iron Rising stem metal seated gate valve
Body,BonnetCast Iron GG25, Ductile Iron GGG40 / GGG50
Seat RingBrass,SS304,SS420
DiscCast iron,Ductile iron
Stem2Cr13,Brass
O-RingNBR
NutBrass
HandwheelCast iron,Ductile Iron

DIN3352-F4 Rising stem Resilient metal seated gate valve  Dimensions

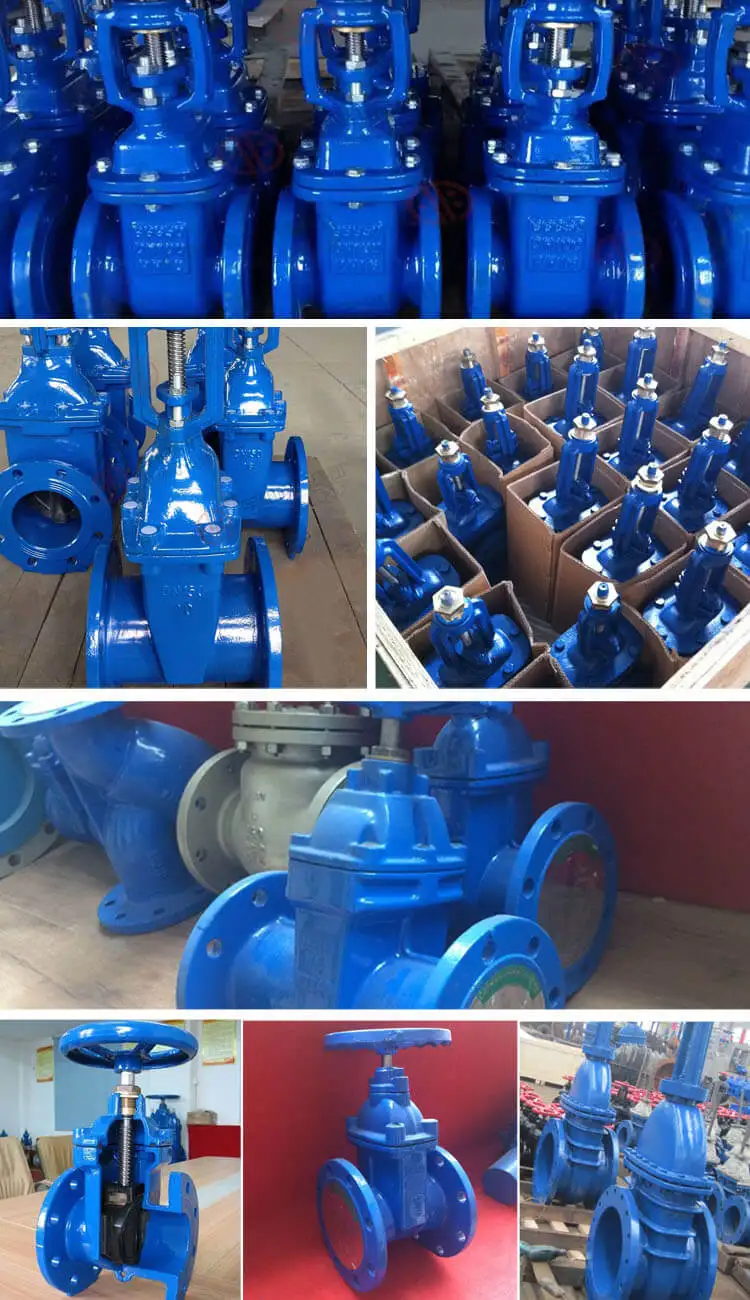

Product showroom
Quality control



production line





contact with us

 We provide you with sincerely service.if you are interested in our valves,contact us NOW!
