Quick Details

  • Standard or Nonstandard: Standard
  • Structure: V port ball
  • Pressure: Medium Pressure
  • Power: Pneumatic
  • Material: Casting
  • Temperature of Media: Medium Temperature
  • Media: Pulp,Paper
  • Port Size: 12inch
  • Place of Origin: Zhejiang, China (Mainland)
  • Model Number: QV647
  • Brand Name: TANA or OEM
  • Application: General
  • End connection: Flange, Wafer
  • Seat: metal to metal or PTFE

Packaging & Delivery

Packaging Details Plywood case
Delivery Time we will deliver them in 20 days after payment

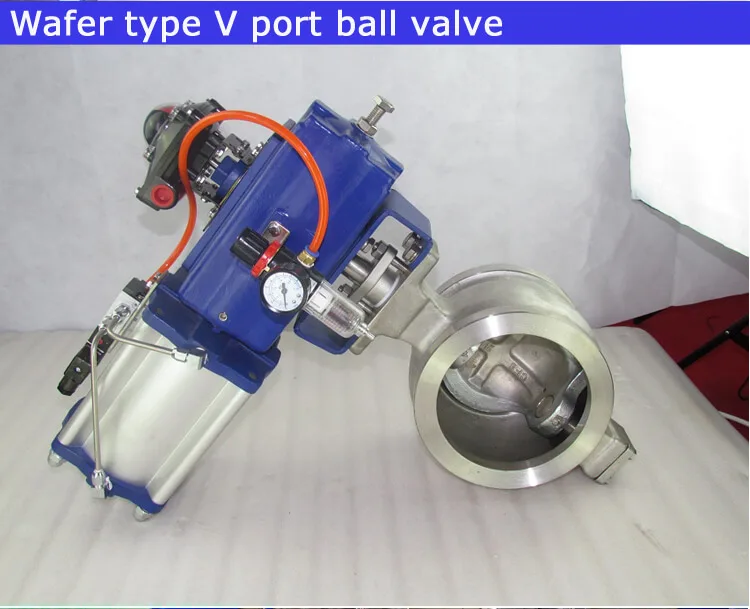

Stainless steel V port ball valve



Design Features

V port  ball valve is a quarter-turn control valve. V type valve core is designed with a special V shape notch. This consequently contributes to strong shear force and precise flow control. Thus, TANA’s V-port ball valve is especially suitable for medium which contains fiber or solid particles.



Body

  • Integral body design ensures smooth flow, easy assembly and smaller shell leakage possibility.
  • Both wafer and flange connection are available.

Core

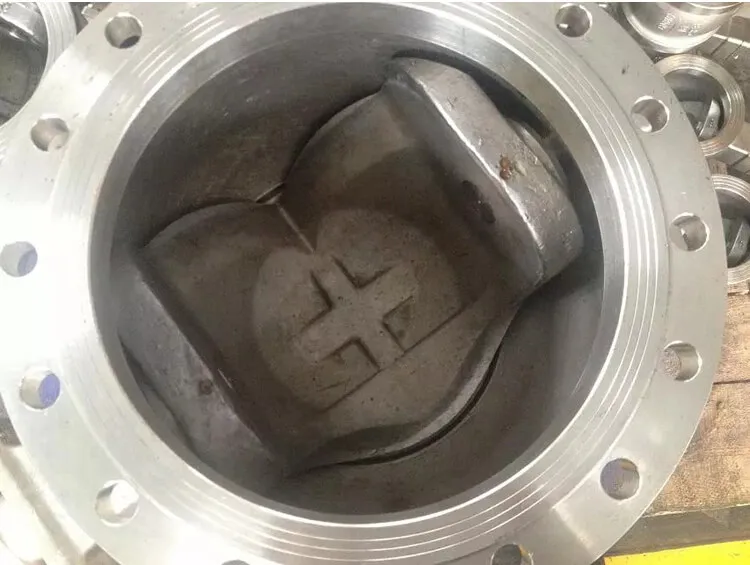

  • Specially designed V-notch ball provides strong cutting stress and tight sealing.
  • Hard chromium, nitriding, and HCOF treatments are all available for the ball surface treatment, improving hardness, abrasion resistance, fatigue resistance, corrosion resistance and performance under high temperature.
  • Well ground notched ball surface ensures small operating torque and tight seal, especially for metal seated segment valve.

Seat

  • Metal, RTFE or Devlon are available for seat options.
  • For valve rated under class 150, retainer is casted on valve body to eliminate any possible space between seat ring and body for residue accumulation. Consequently, this ensures perfect seal.

Stem

  •  The stem is finely ground to match the actuator excellently, which prevents rocking motion and potential failure of the segmented valve.
  • Close-fit spline or pin-key are available for stem-core connection to provide reliable transmission without motion lost or dead band.



Technical Specification

 Sizes:

DN 25~250mm   NPS 1”-10”  (wafer type)

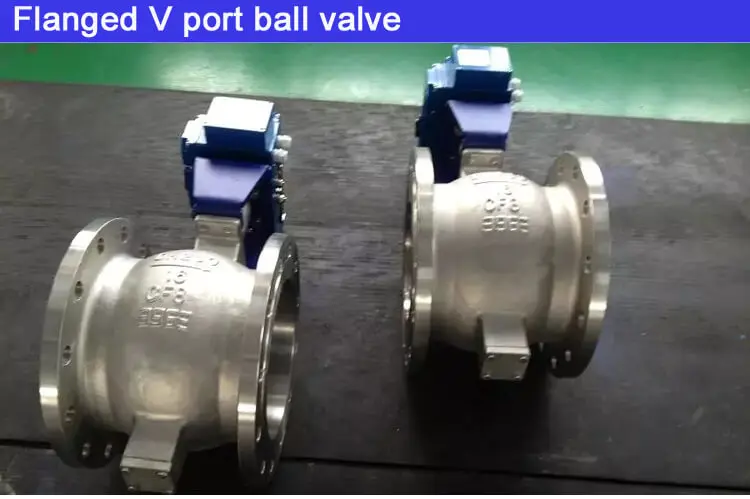

DN 25~500mm   NPS 1”-20” (flange type)



Seat Material:

Resiliant: PTFE/RPTFE/PEEK/DEVLON/NYLON

Metal: Tungsten Carbide/Satellite/Ni60



Pressure Rating:

PN 10/16/25/40/63

ANSI 150/300/600

Actuator :

Handle/Worm Gear

Pneumatic/Electric





Face to Face:

TANA Standard (Wafer Type)

ISA S75.04, IEC/DIN 534-3-2 (Flange Type)

Flange End:

GB/T 9113.1, JB/T 79.1, HG 20592,

ASME B 16.34, ISO 7005

(other connections on request)

Manufacturing to NACE MR-01-75 on request.



Certificate: CE, ISO9001, TS

Application:

Pulp & Paper/ Petrochemical /

Printing & Dying /Pharmacy/ Beverage & Food

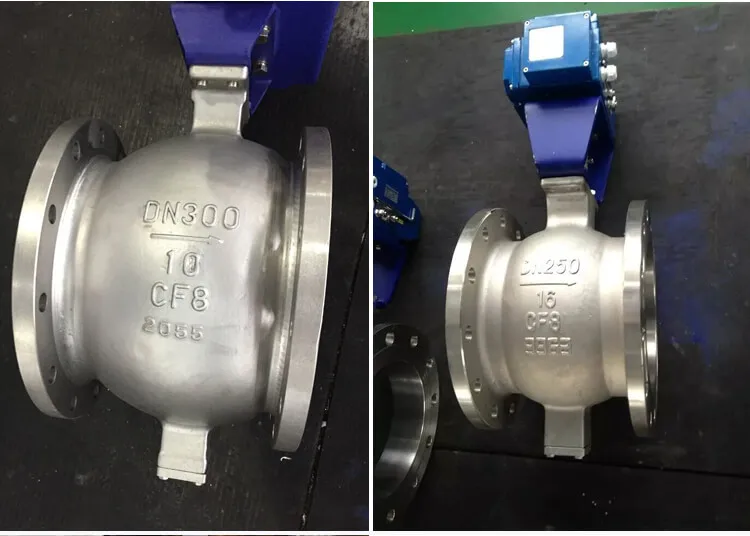

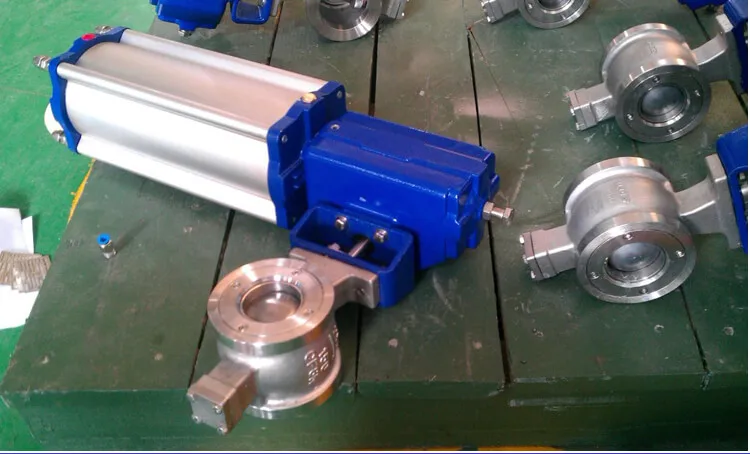

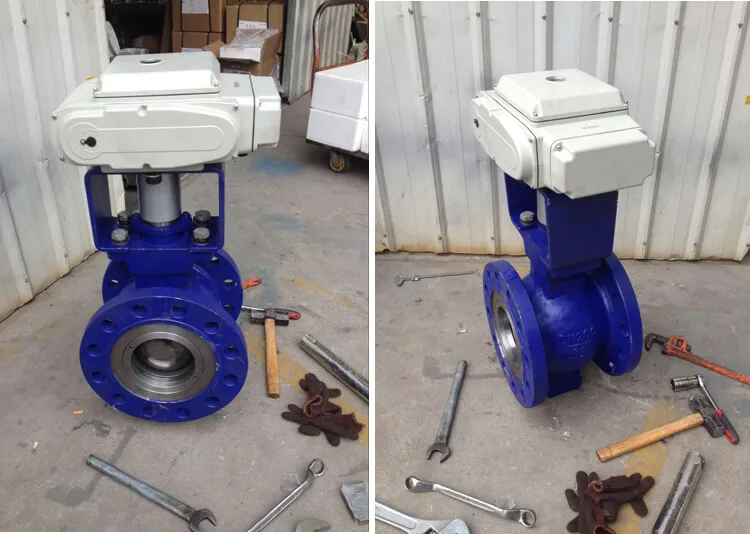

Product showroom



TANA will provide you satisfying Price, Quality And Service.

Welcome to visit or email us your inquiry.

Provide CO,FA,FB,FE,FF,FN,FP,FX etc. Certificates as per customer’s requirement.



Quality control

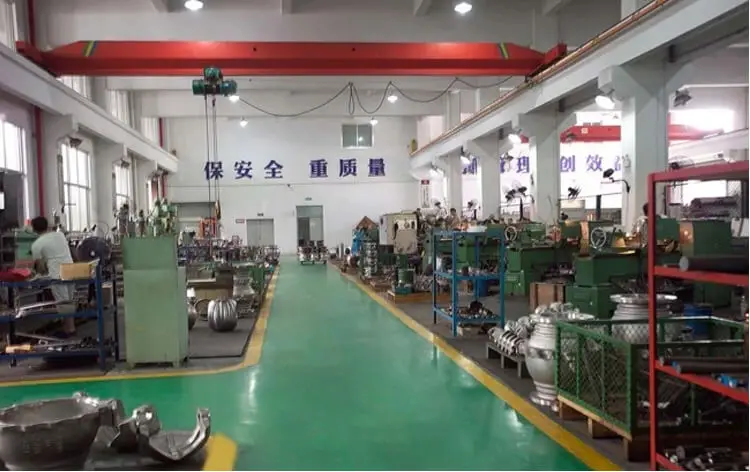

production line
