Quick Details

  • Standard or Nonstandard: Standard
  • Structure: gate with by pass
  • Pressure: High Pressure
  • Power: Manual
  • Material: Casting
  • Temperature of Media: Medium Temperature
  • Media: Water,Oil,Gas etc.
  • Port Size: 2 ~ 48 inch
  • Place of Origin: Zhejiang, China (Mainland)
  • Model Number: Z41H
  • Brand Name: TANA or OEM
  • Application: General
  • End connection: Flange
  • Color: silver grey default or as requested
  • Certificate: API6D
  • Certificate-1: CE
  • Certificate-2: ISO9001

Packaging & Delivery

Packaging Details Plywood case
Delivery Time we will deliver them within 20 days after payment

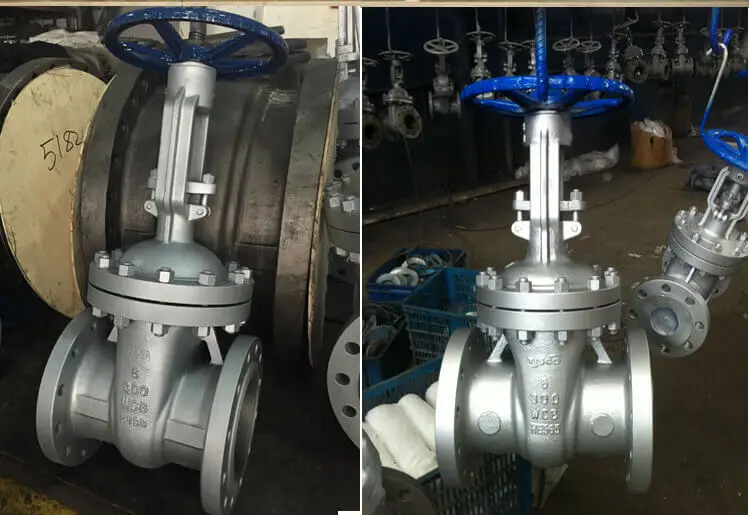

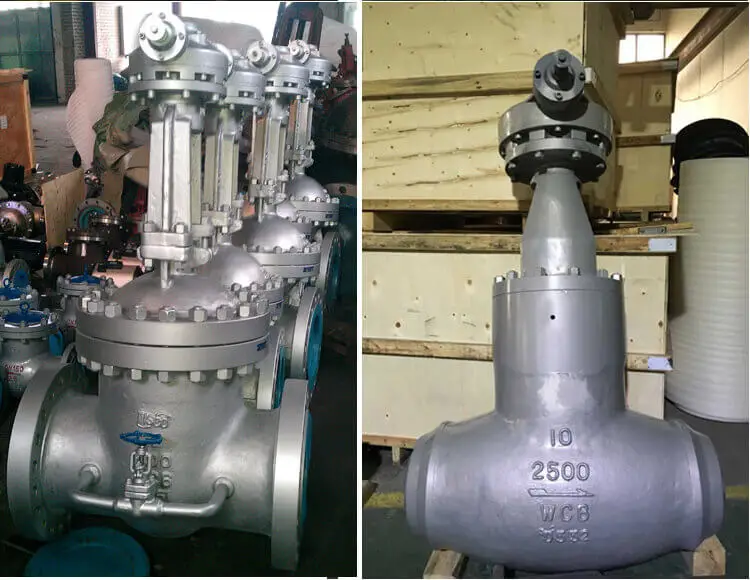

API600 A216 WCB wedge flanged gate valve with bypass valve

Design Features

Full port design

With by pass valve
OS&Y, outside and screw
Bolted bonnet, back seal structure
Flexible wedge, fully guided
Choice of solid or split wedge
Renewable or welded seat
Extended stem design for low temperature
Flanged or butt-welding ends



Technical Specification

Size:2"-48" or DN50-DN1200

Pressure: Class150-2500LB or PN16-PN250 or 10K-40K

Material:WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M,etc.

Design & Manufacture Std.: API600, ASME B16.34, API6D, BS5351,JIS B2073

Face to Face Std.: ASMEB16.10 (JIS B2002),API 6D, DIN3202

Butt welded end Std.: ASME B 16.25

Test Standard: ISO5208, API598 (JIS B2003), API 6D, BS 6755

Operated way: Handwheel, Gear, Pneumatic, Electric Actuator



Detailed Specification:

NameAPI600 A216 WCB wedge flanged gate valve with bypass valve
Model Number:Z40Y-150Lb
Structure:API 600 OS&Y, rising stem ,outside screw and yoke
Pressure:150lb,300lb,600lb,900lb,1500lb,2500lb
Power:Handwheel,Gear Operated
Material:WCB,LCB,WC6,WC9,CF8,CF8M,CF3,CF3M,
Temperature of Media:-29 Deg. C ~ 200 Deg. C
Media:W.O.G etc
Design and manufactureANSIB16.34,API600 API6D,API603,BS1414
Face to FaceASME B16.10
Flanged end ASME RF B16.5,ASME B16.47 series A
B.W. endASME B16.25
Test &InspectionAPI598,API6D
Main Material of parts
NO.Part nameMaterial
14Grease nippleBrass
13Grub screwCarbon steel
12Hand wheel nutCarbon steel
11Hand wheelMalleable lron/cast steel/ ducile lron/fabricated steel
10Yoke nutCarbon steel/SS
9Eye bolt and nutA 193 B7/A194 2H~A193 B8/A194 8/A
8PinCarbon steel/stainless steel
7Stem nutASTM A 439-D2/Copper Alloy
6Gland flangeCarbon steel/equivalent to body material
5GlandA182 F6A,F304,F316,F44,F51,Monel etc.
4Back seat A182 F6A,F304,F316,F44,F51,Monel etc.
3WedgeWCB,CF8,LCB
2SeatA105/F304/F316 + SS304/SS316/SS13Cr/STL6/Monel etc.
  1BodyWCB,WC6,WC9,CF8,A351 CF8M,CF3,CF3M,LCB,CN7M.

Optional Body Material:

Carbon steelASTM A216 WCB , etc
Low temperature steelA352 LCB , etc
Cr-Mo steelA217 WC6 ,WC9, etc
Stainless SteelA351 CF8,CF3,CF8M,CF3M , etc
Alloy steelAlloy 20 , etc
Super duplexA995 4A ,5A ,6A , etc
Aluminum bronzeB148 C95500 , C95600 , C95800 , etc
MonelMonel K400, K500
Inconelinconel 600 , etc
HastelloyHastelloy B , Hastelloy C276 , etc
IncoloyIncoloy 825 , Incoloy 625 , etc

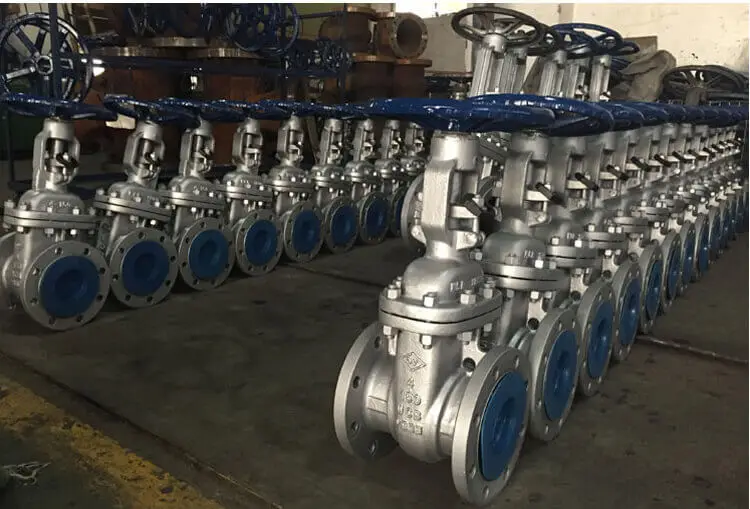

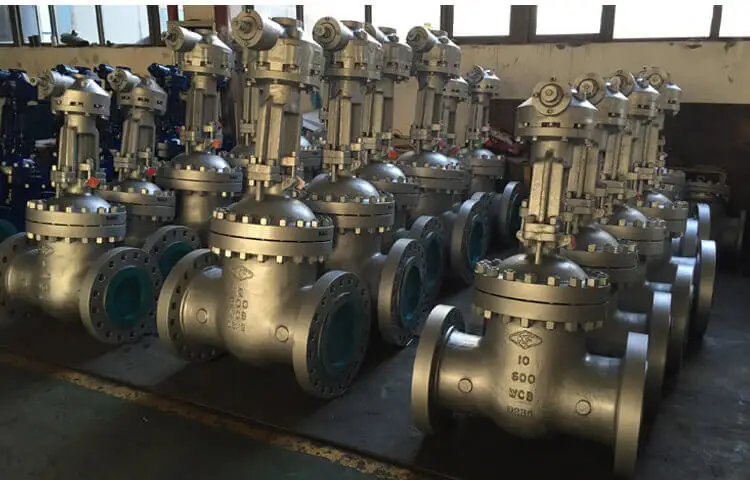

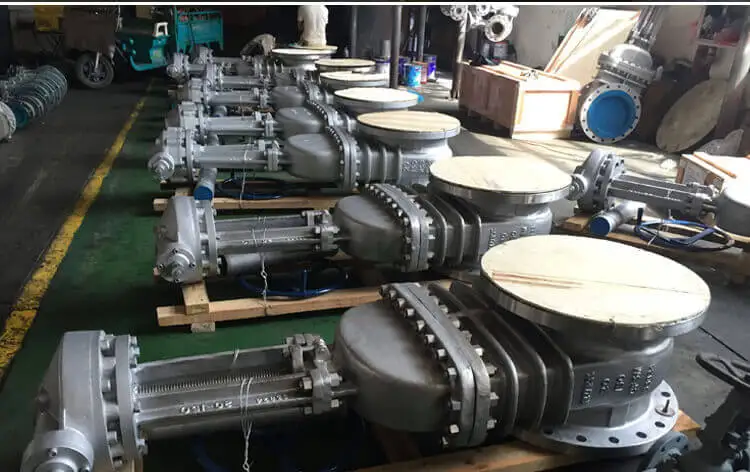

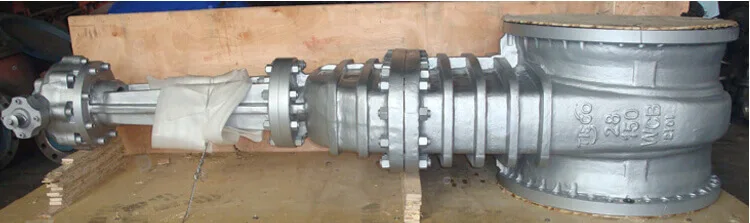

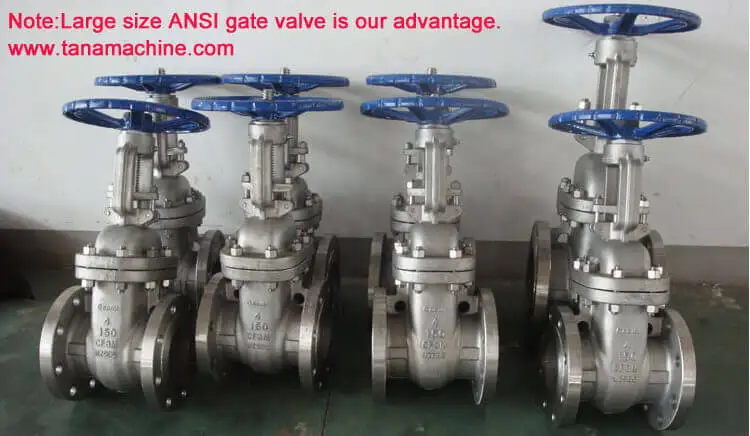

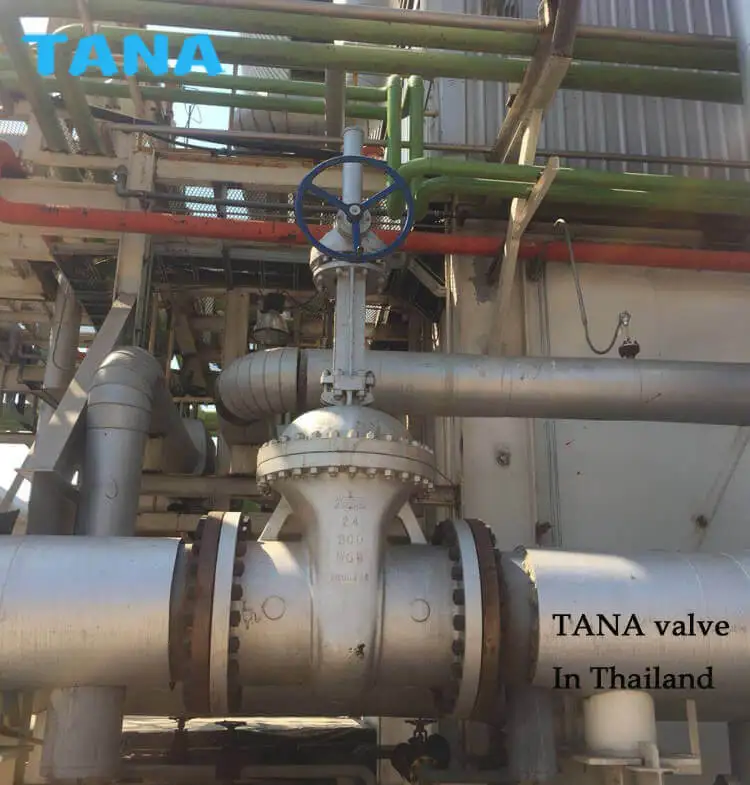

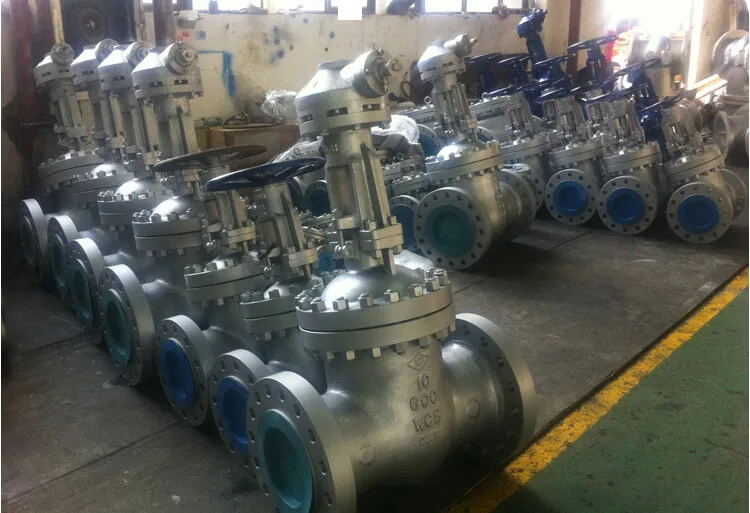

Product showroom

TANA will provide you satisfying Price, Quality And Service.



Welcome to visit or email us your inquiry.



Provide CO,FA,FB,FE,FF,FN,FP,FX etc. Certificates as per customer’s requirement.
