Quick Details

  • Standard or Nonstandard: ASME
  • Structure: Gate
  • Pressure: Class150LB or PN10-PN16
  • Power: Handwheel, Gear, Pneumatic, Electric Actuator
  • Material: WCB, Cast Iron, Ductile Iron,WCC, LCB, LCC
  • Temperature of Media: Low Temperature
  • Media: Water
  • Port Size: 2"-40"
  • Place of Origin: Zhejiang, China (Mainland)
  • Model Number: Z341Q-1.6C
  • Brand Name: TANA
  • Application: General
  • End Connection Std: ASME B16.5, ASME B 16.47,MSS SP-81
  • Test Standard:: ISO5208,MSS SP-81, API598

Packaging & Delivery

Packaging Details plywood case
Delivery Time we will deliver them in 20 days after payment

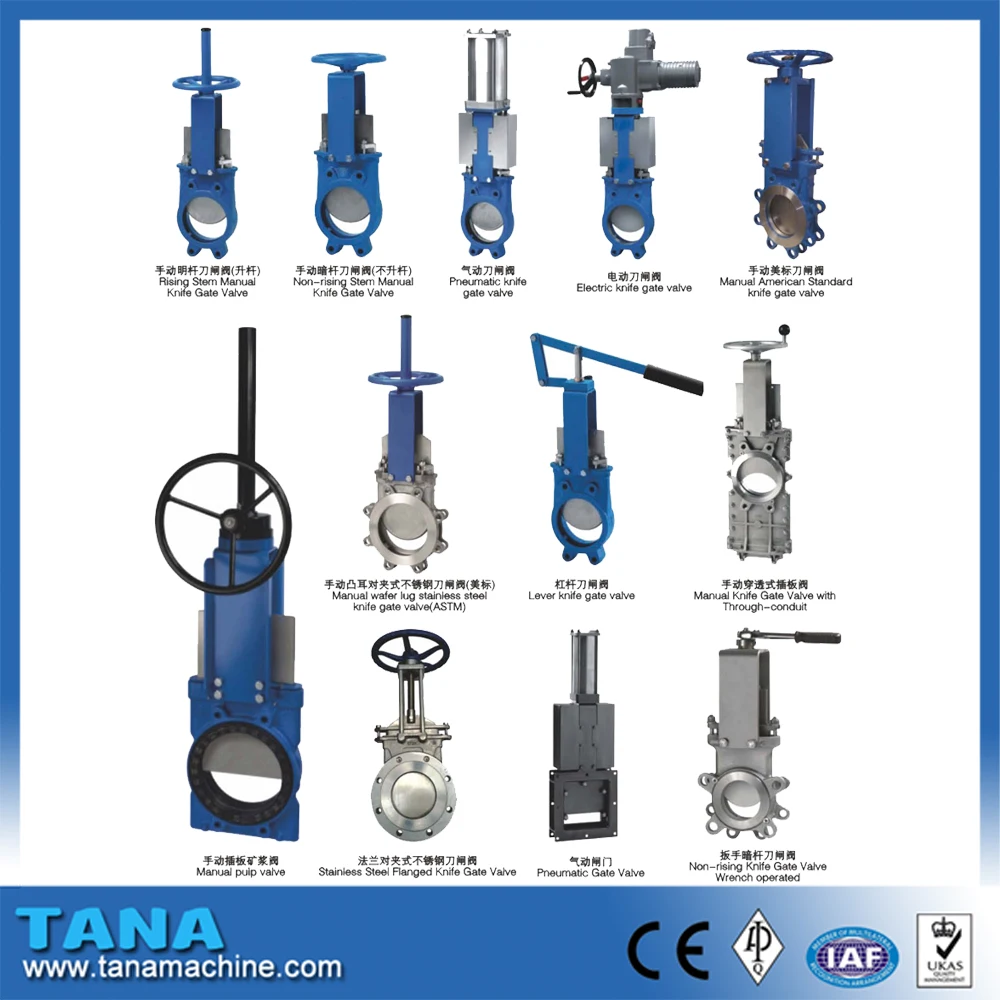

TANA ASME  ASME carbon steel stainless steel wafer knife gate valve

 Design Features

 1. Liftable sealing surface of wedge can scrape of f the adhered things on the sealing surface and automatically eliminate the impurities.
2. The Stainless steel wedge can prevent sealing leakage due to corrosion.
3. The integral stainless steel materials can prevent corrosion and damage.
4. The scientific back seal packing box design makes the bak seal safe, effective and durable.
5. The triangle supporter ensures necessary mechanical properties.
6. V shape wedge can serve as control valve.
7. The guide block on the valve body enables the wedge to move correctly and extrusion block provides effective sealing for the wedge.
8. The design of valve body reinforcing rib can enhance the body strength.

 ASME carbon steel stainless steel wafer knife gate valve

Technical Specification

Size:2"-40" or DN50-DN1000

Pressure: Class150LB or PN10-PN16

Material:WCB, Cast Iron, Ductile Iron,WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M,etc.

Design & Manufacture Std.: MSS SP-81,MSS SP-135,ASME B16.34

Face to Face Std.: MSS SP-81,MSS SP-135,API B16.10,DIN 3202

End Connection Std.: ASME B16.5, ASME B 16.47,MSS SP-81

Test Standard: ISO5208,MSS SP-81, API598

Operated way: Handwheel, Gear, Pneumatic, Electric Actuator



TANA will provide you satisfying Price, Quality And Service.

Welcome to visit or email us your inquiry.

Provide CO,FA,FB,FE,FF,FN,FP,FX etc. Certificates as per customers requirement

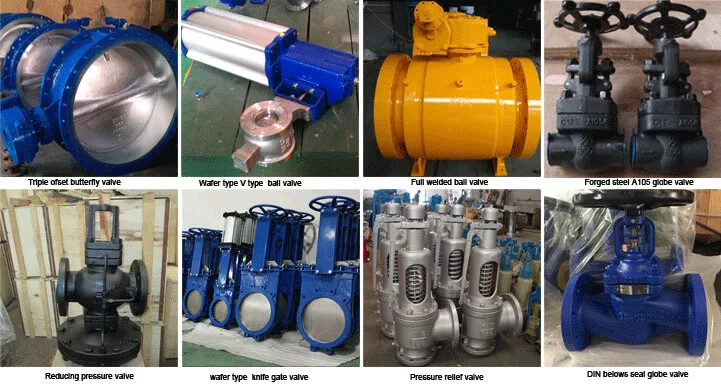

Product showroom
